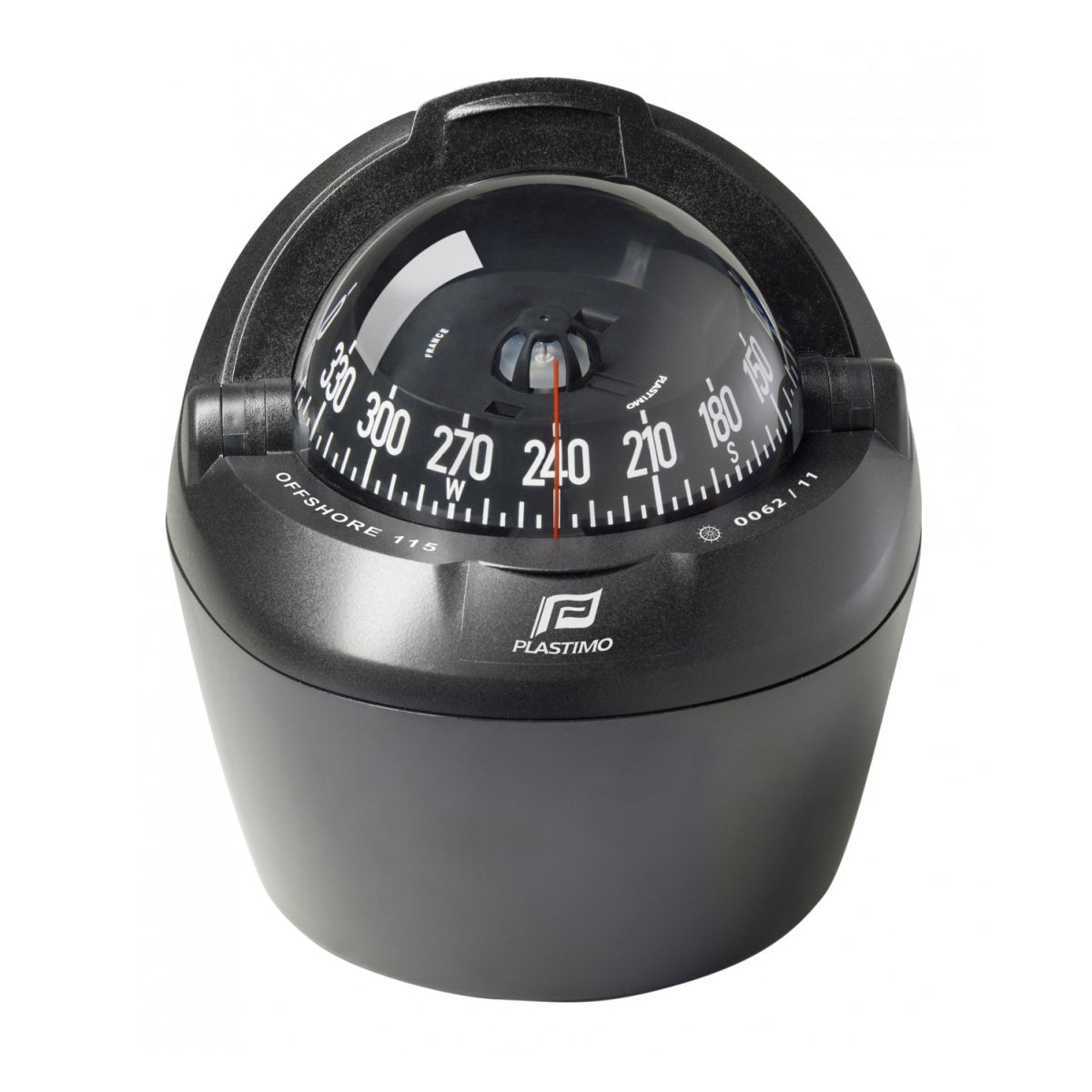

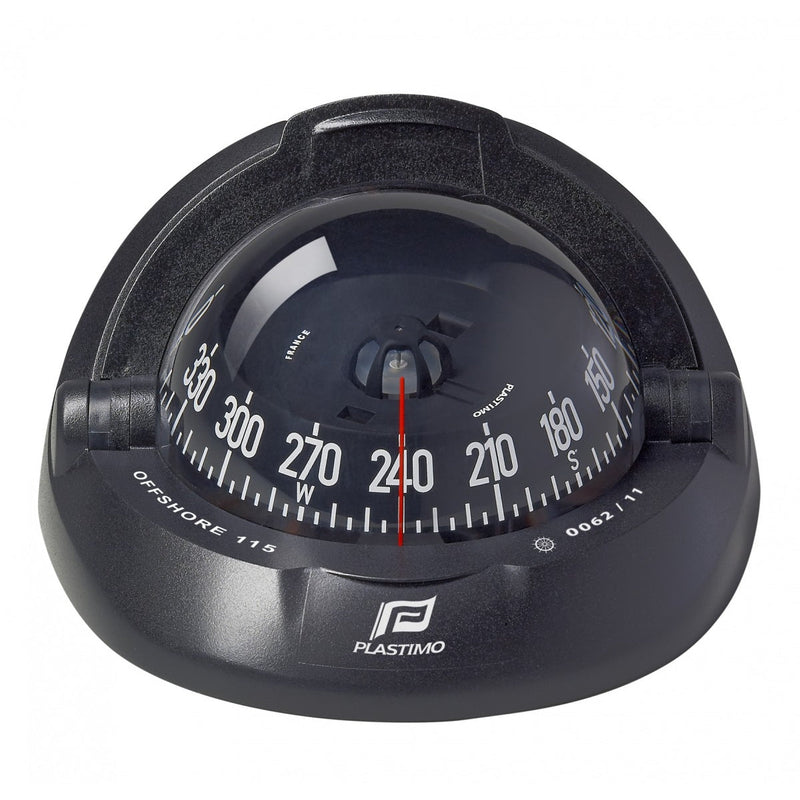

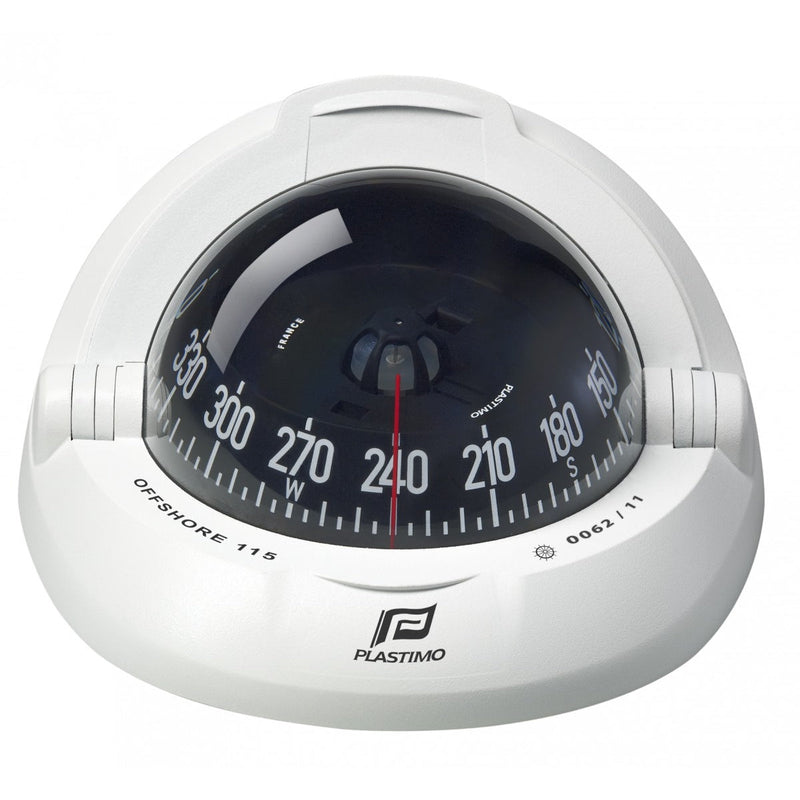

OFFSHORE 115 COMPASS
Powerboats 8 to 12 m (26 to 40 ft). Very compact flushmount compass. Incorporates 3-section sliding cover. Universal balance: round the world with one compass. SOLAS-MED approved: equally suitable for professional fishing boats & commercial vessels.
Shipping
In Germany: delivery takes 3-10 days.
Abroad: Delivery takes 7-30 days (depending on the country)
Description
| Feature | Description |
| Boat size | Powerboats of 8 to 12 metres (26 to 40 ft). |

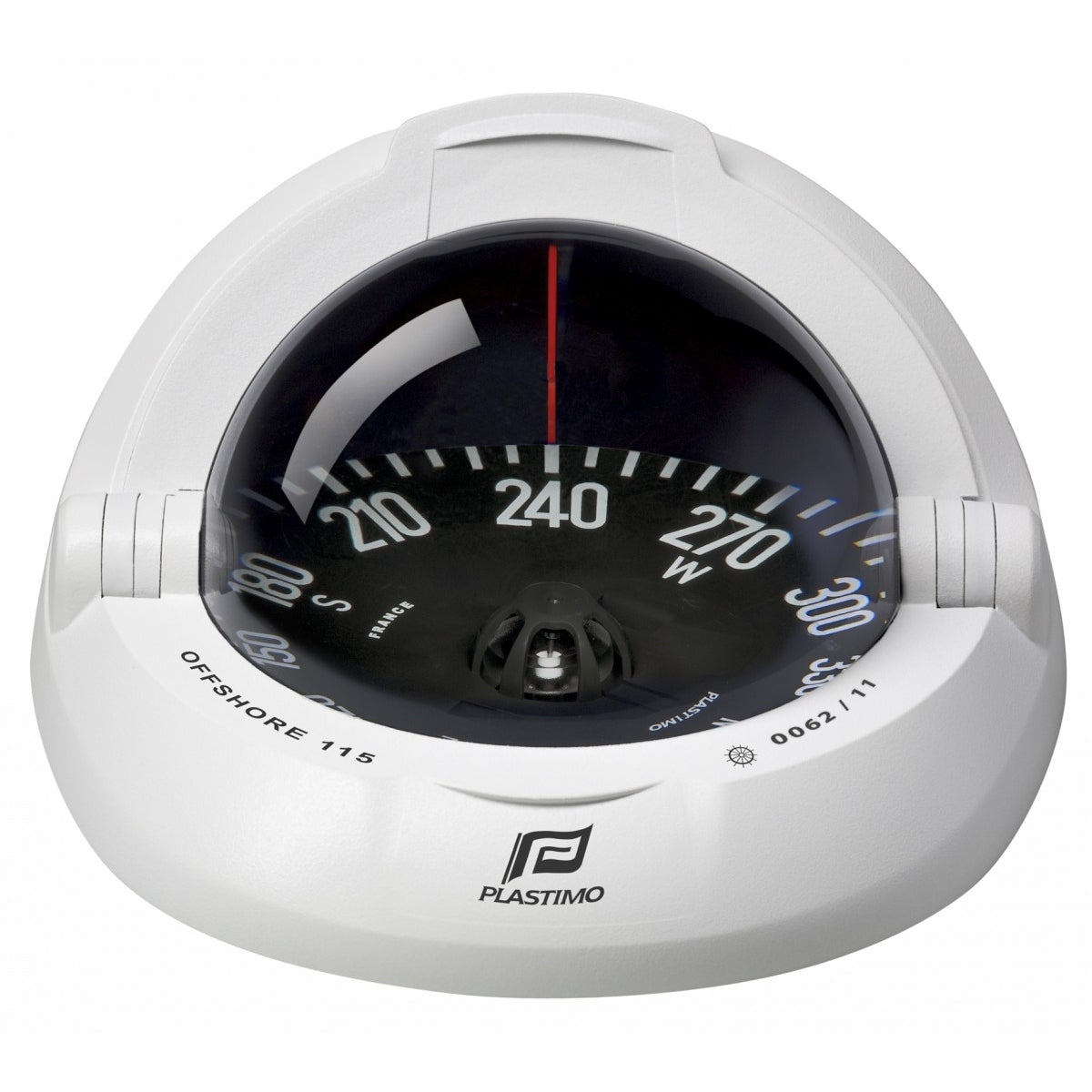

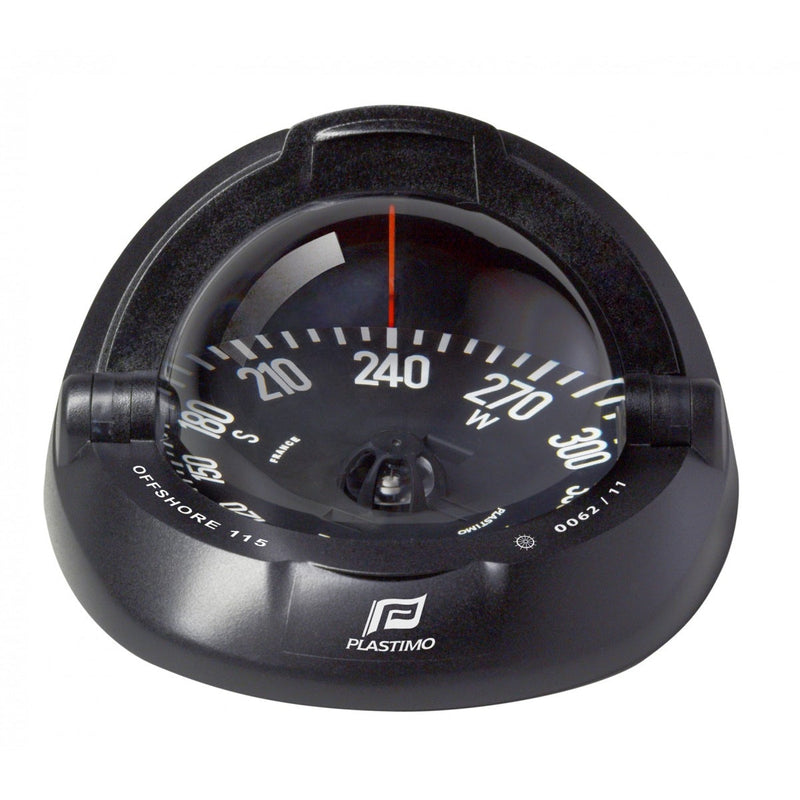

| Compass card | Conical or flat card graduated every 5°, apparent Ø 101 mm. Heading numerals every 30°. |
| Hood | Articulated protective hood: built-in sliding cover, composed of 3 telescopic parts, with cushioned closing. |
| Mounting | - Flushmount : on a horizontal surface. - Binnacle available as option. |
| Resistance to vibrations and hull pounding | Magnetic cell equipped with the unique "Vibration Absorber" system : minimal contact between the pivot and the sapphire cup (tested by independent laboratory). |
| Lubber line | 1 lubber line. |
| Compensation | Supplied as standard. |
| Lighting | 12-24 V LED, included. |
| Supplied with | Screws, drilling template. |
| Approval/homologation | SOLAS-MED 96/98. |
To obtain a binnacle-mount compass, please order 1 flushmount compass + 1 optional binnacle (black ref. 61000 or white ref. 61001).
UNIVERSAL BALANCE, one single compass around the world.
Double-dip compass designed to operate accurately in both Northern and Southern hemispheres.
- Watertight construction
- One-piece moulded flange and bowl.
- Viton® diaphragm with extreme expansion and retraction capacity: compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.

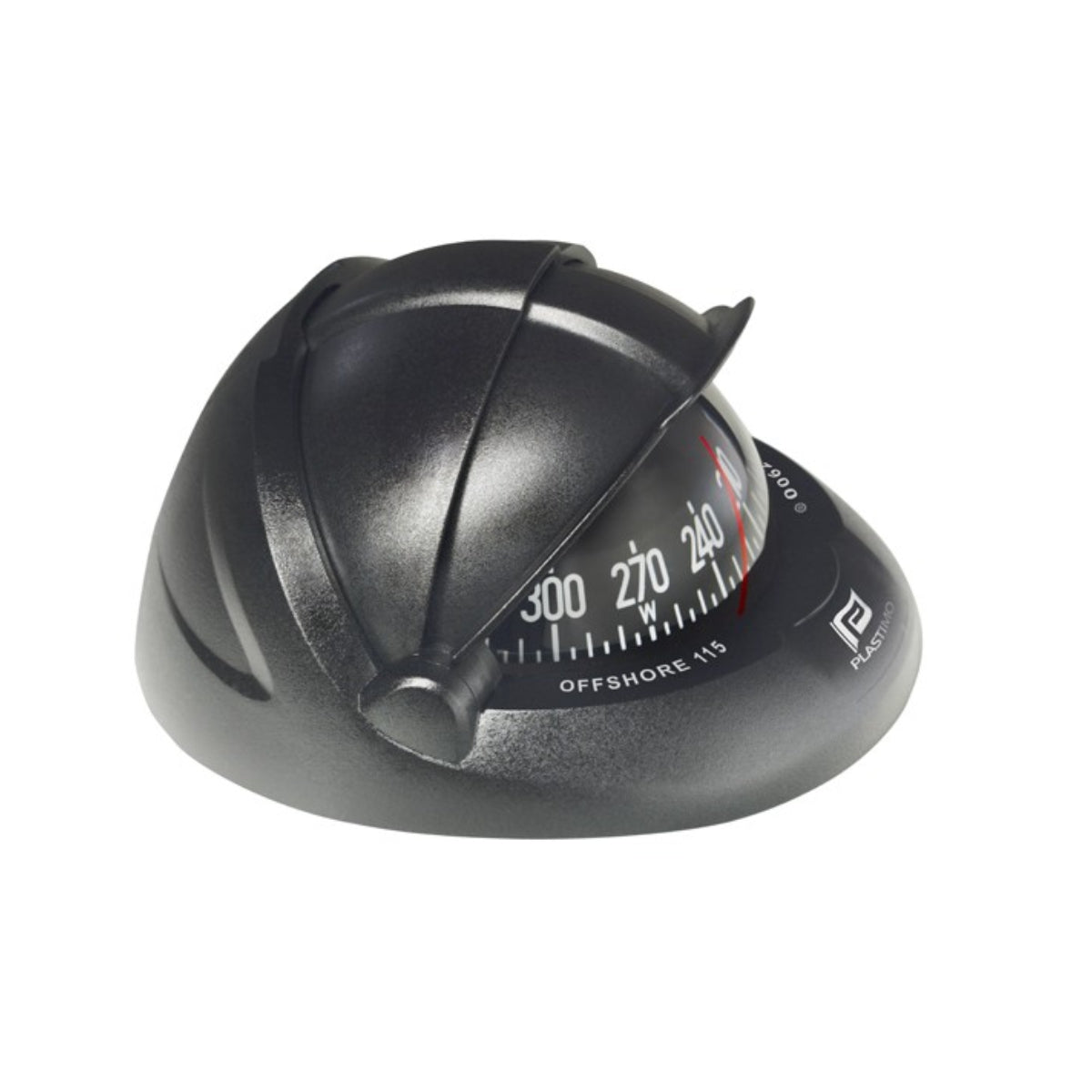

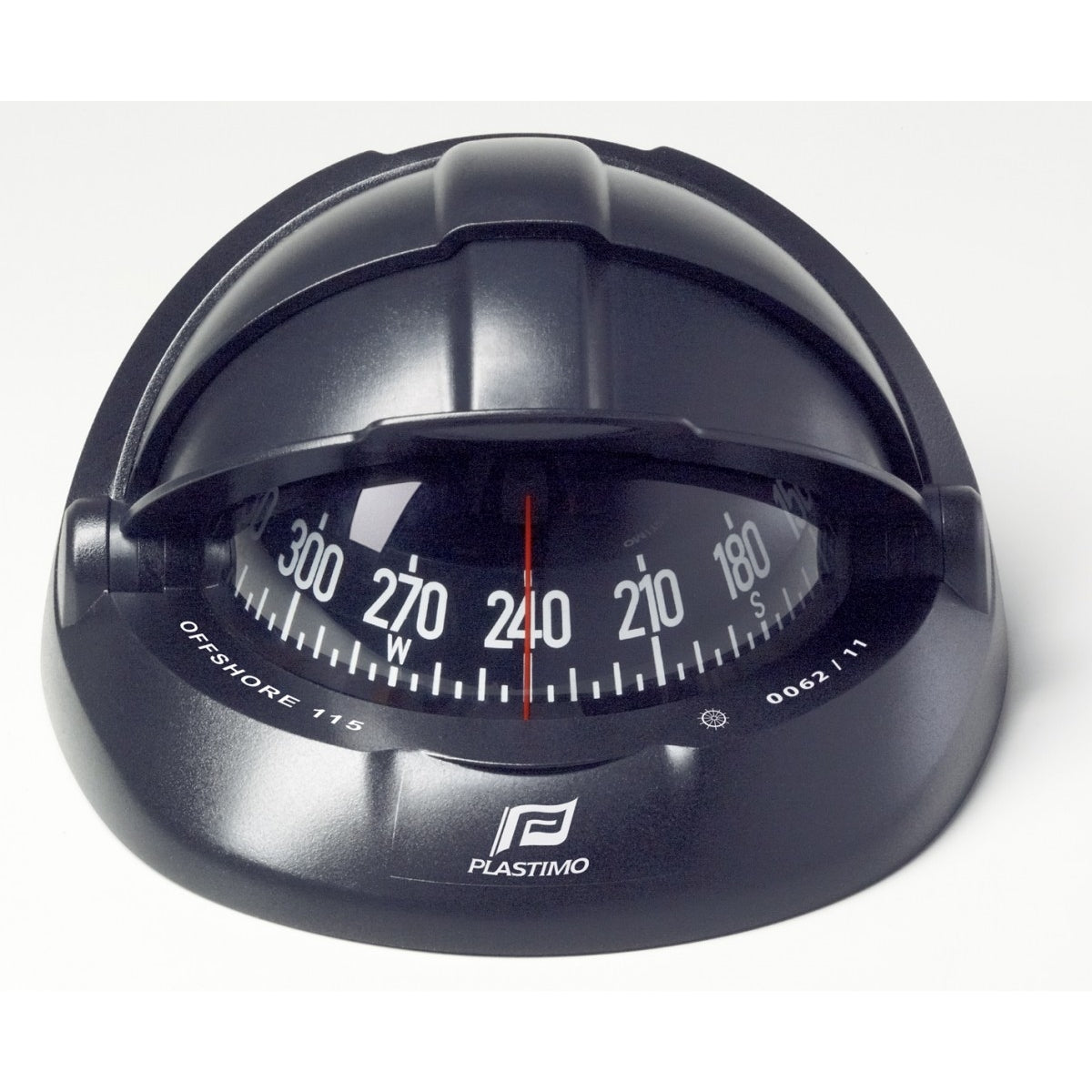

- Articulated hood : built-in sliding cover composed of 3 telescopic parts with cushioned closing.

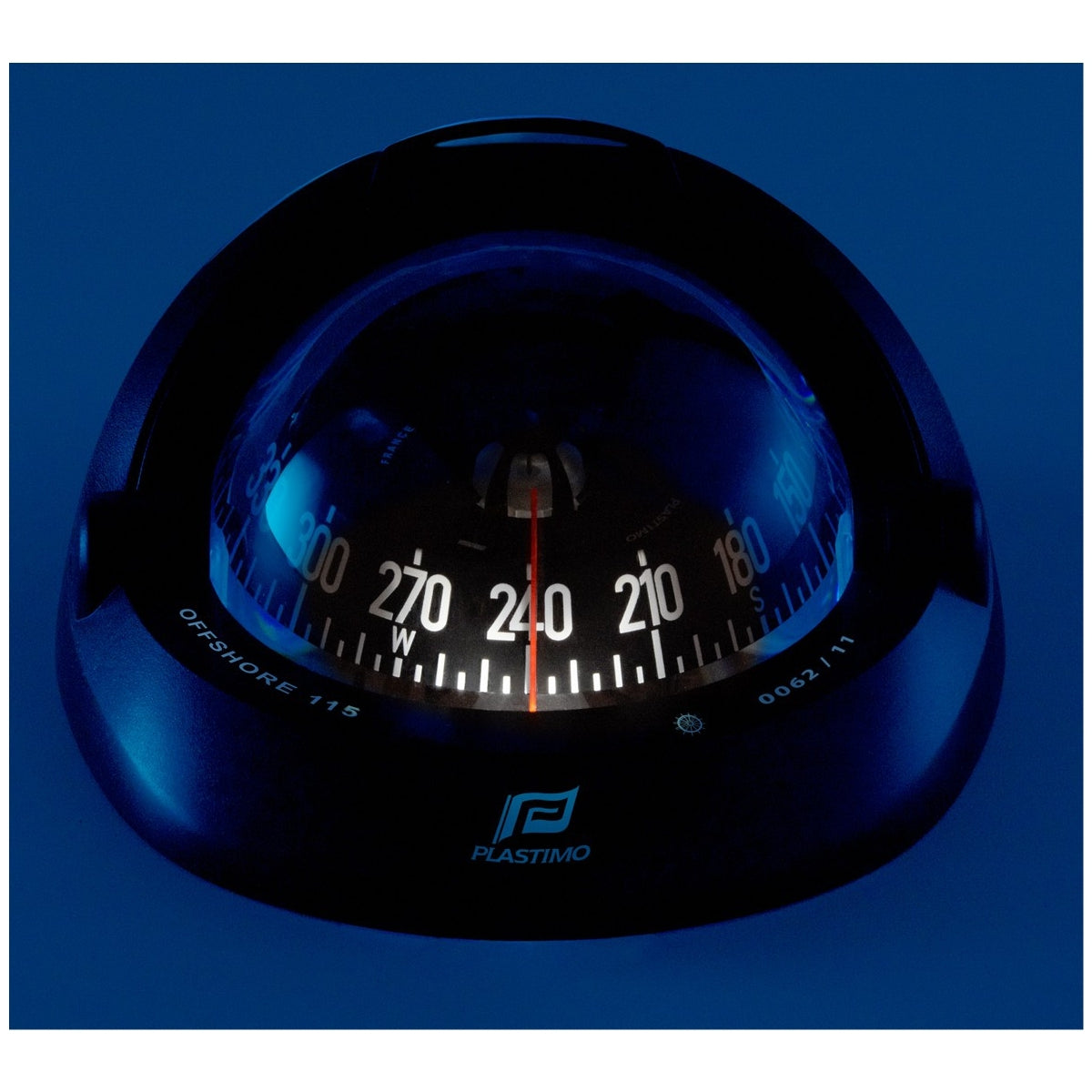

- Offshore 115 by night
- LED lighting: Energy saving
- High resistance to shocks.
- Increased lifetime.
- Same bulb is suitable for 12 or 24 V power supply.
