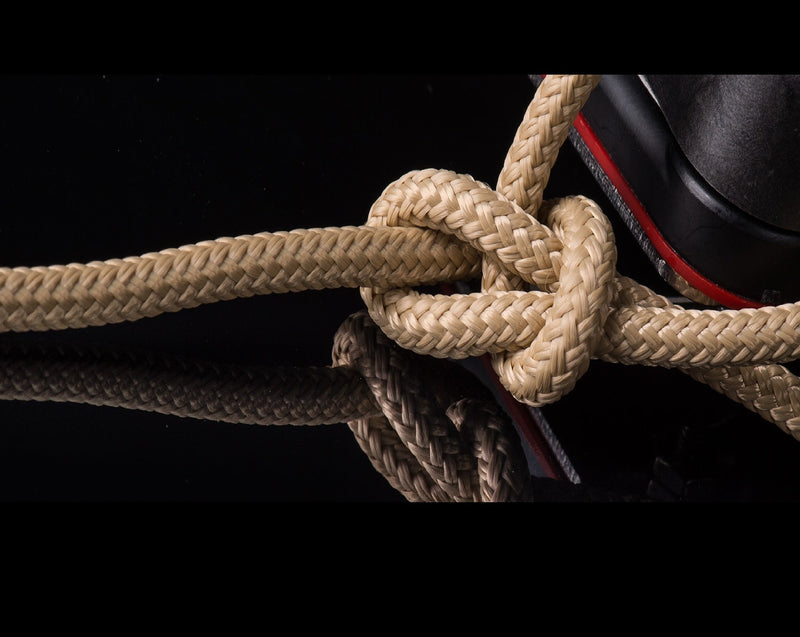

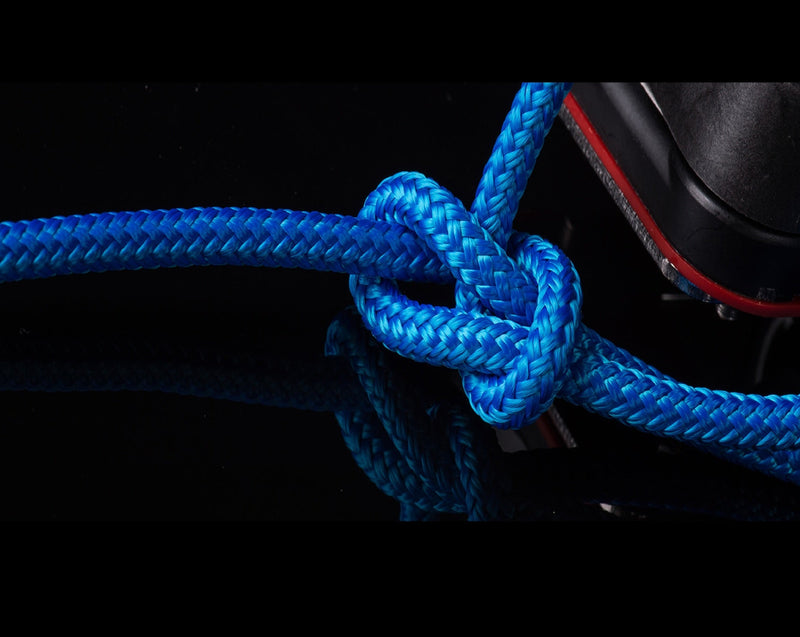

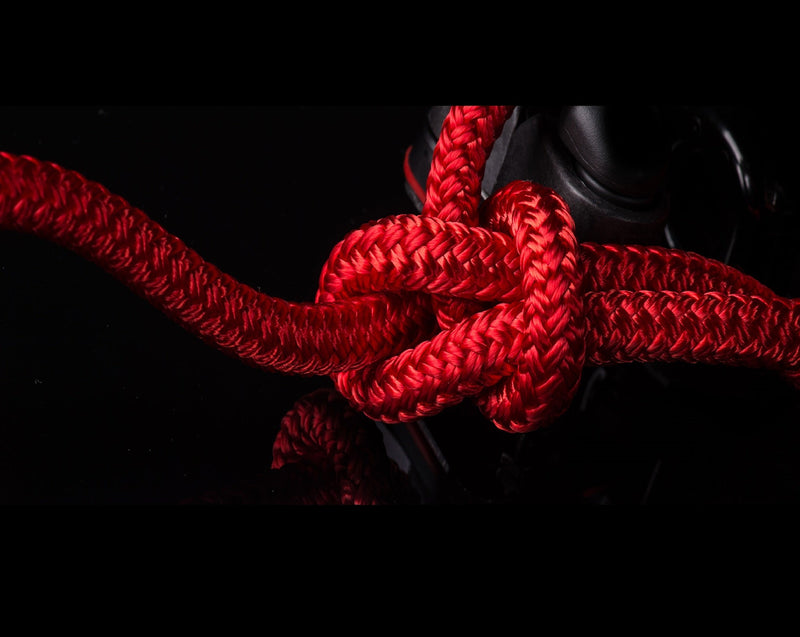

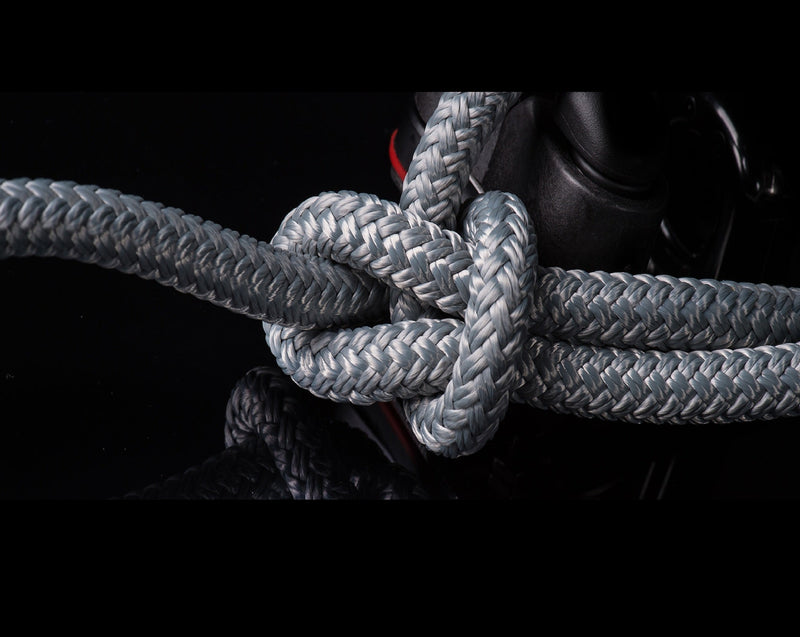

Cruising rope Braidline
The Braidline the universal multipurpose rope. Using for sheets, halyards, downhauls, uphauls, topguys.
Shipping
In Germany: delivery takes 3-10 days.
Abroad: Delivery takes 7-30 days (depending on the country)
Description
| Braidline polyester sizes | ||||||||||||||
| Ø mm | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| BL/breaking load daN | 800 | 1 450 | 2 100 | 2 900 | 4 400 | 5 900 | 7 800 | 8 600 | 11 400 | 14 200 | 16 500 | 18 800 | 21 600 | 24 500 |
| g/m | 24 | 47 | 74 | 106 | 136 | 179 | 237 | 300 | 358 | 444 | 518 | 591 | 689 | 769 |
Advantages:
Very supple, it is comfortable to handle, offers good resistance to abrasion and easy splicing
Application:
Sheets, halyards, downhauls, uphauls, topguys.
Construction:
Double braid. Polyester core and cover.
| Raw material Main characteristics of synthetic fibres | ||||||||
| COUSIN Trestec uses the best materials available on the market to increase comfort, safety and performance: Polyamide and high tenacity polyester, Technora®, Dyneema®, Twaron®, HMPE, Spectra®, Vectran® or PBO®. | ||||||||
|
|
Polyamide 6 / 6.6/11 (PA) |
Polyester (PES) |
Polypropylene (PP) | Polyethylene High modulus (HMPE) | Liquid crystal polyester (LCP) |
Aramid |
PBO |
Steel |
|
Brands |
Nylon |
|
| Dyneema® Spectra® Others |
Vectran | Twaron® Technora® Kevlar® |
Zylon® |
|
|
Acids |
Sensitive | Sensitive to high rate | No effect | No effect | Good resistance | Good resistance | Good resistance | Low resistance |
|
Alkaline | No effect to low rate | Sensitive to high rate | No effect if low concentration | No effect | Very good resistance | Good resistance | Very good resistance | Low resistance |
|
UV | Good resistance | Very good resistance | Low resistance | Very good resistance | Good resistance | Low resistance | Very low resistance | Very good resistance |
| Working temperature limit °C approx. |
140 |
170 |
80 |
70 |
200 |
350 |
500 |
650 |
| Softening temperature °C approx. |
180 |
220 |
150 |
120 |
|
|
|
720 |
| Fusion temperature °C approx. | 220 (PA) 6 260° (Nylon) 6.6 |
260 |
170 |
150 |
330 |
Carbonises at around 500°C |
Carbonises at around 650°C |
1600 |
| Density | 1.14 | 1.38 | 0.91 | 0.97 | 1.39 | 1.44 | 1.56 | 7.86 |
| Tenacity cN/Tex | 60-80 | 60-85 | 55-65 | 320 | 240 | 195 | 400 | 20 |
| Technical textile units: | ||||||||
