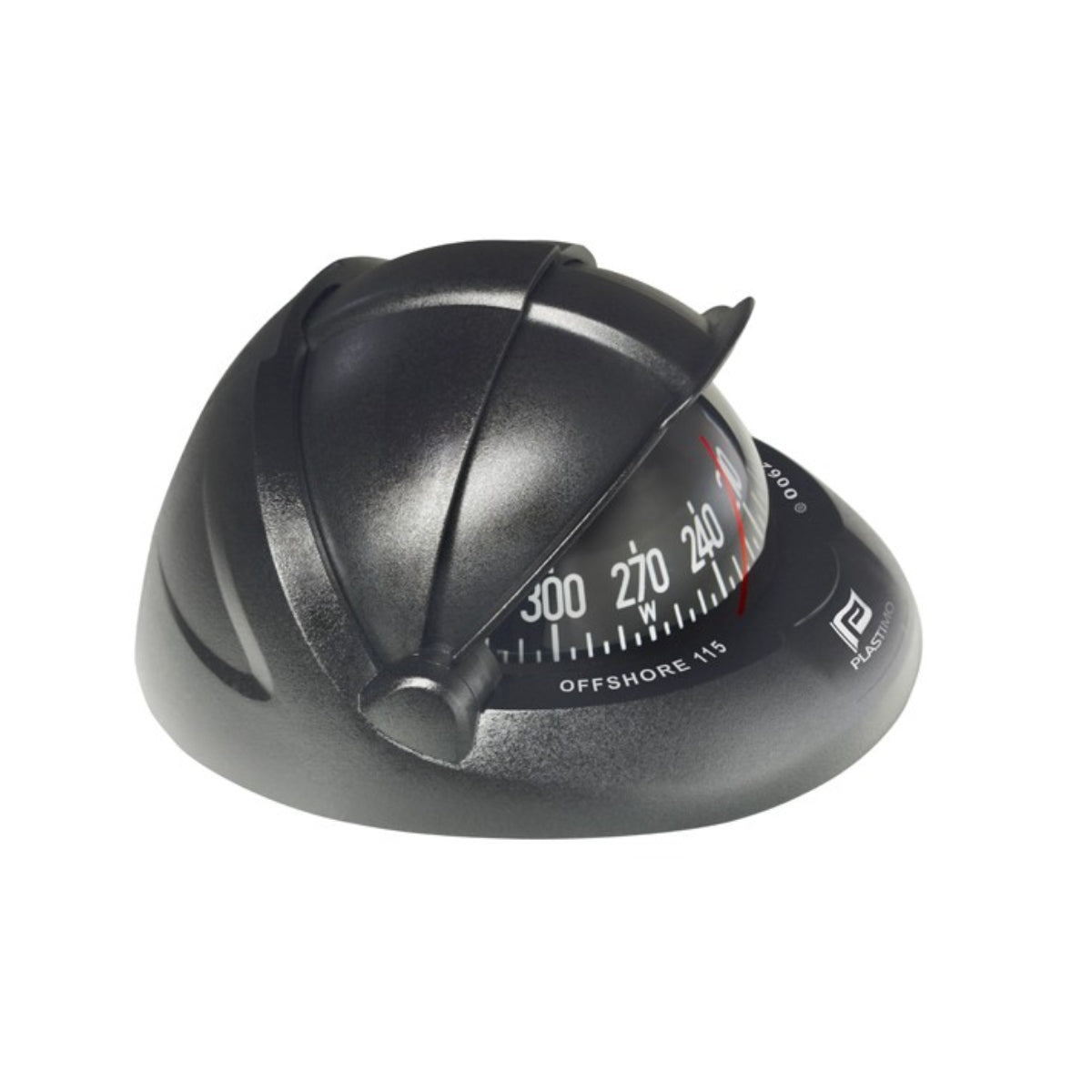

OFFSHORE 115 COMPASS

Plastimo
Réf: 60991

Powerboats 8 to 12 m (26 to 40 ft).
Very compact flushmount compass.
Incorporates 3-section sliding cover.
Universal balance : round the world with one compass.

SOLAS-MED approved: equally suitable for professional fishing boats & commercial vessels.

Description
Colour
€216.67
€216.67
Promotion Épuisé
excl. VAT
plus
Feature Description
Boat size Powerboats of 8 to 12 metres (26 to 40 ft).
Compass card Conical or flat card graduated every 5°, apparent Ø 101 mm.
Heading numerals every 30°.
Hood Articulated protective hood: built-in sliding cover, composed of 3 telescopic parts, with cushioned closing.
Mounting
- Flushmount : on a horizontal surface.
- Binnacle available as option.
Resistance to vibrations and hull pounding Magnetic cell equipped with the unique "Vibration Absorber" system : minimal contact between the pivot and the sapphire cup (tested by independent laboratory).
Lubber line 1 lubber line.
Compensation Supplied as standard.
Lighting 12-24 V LED, included.
Supplied with Screws, drilling template.
Approval/homologation SOLAS-MED 96/98.

To obtain a binnacle-mount compass, please order 1 flushmount compass + 1 optional binnacle (black ref. 61000 or white ref. 61001).
UNIVERSAL BALANCE, one single compass around the world.
Double-dip compass designed to operate accurately in both Northern and Southern hemispheres.

  • Watertight construction
  • One-piece moulded flange and bowl.
  • Viton® diaphragm with extreme expansion and retraction capacity: compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.
  • Articulated hood : built-in sliding cover composed of 3 telescopic parts with cushioned closing.
  • Offshore 115 by night
  • LED lighting: Energy saving
  • High resistance to shocks.
  • Increased lifetime.
  • Same bulb is suitable for 12 or 24 V power supply.
